AMC3330-Q1具有集成直流/直流转换器的汽车类强型隔离放大器

The AMC3330-Q1 is a precision, isolated amplifier with a fully integrated, isolated DC/DC converter that allows single-supply operation from the low-side of the device. The reinforced capacitive isolation barrier is certified according to VDE V 0884-11 and UL1577 and separates sections of the system that operate on different common-mode voltage levels and protects low-voltage domains from damage.

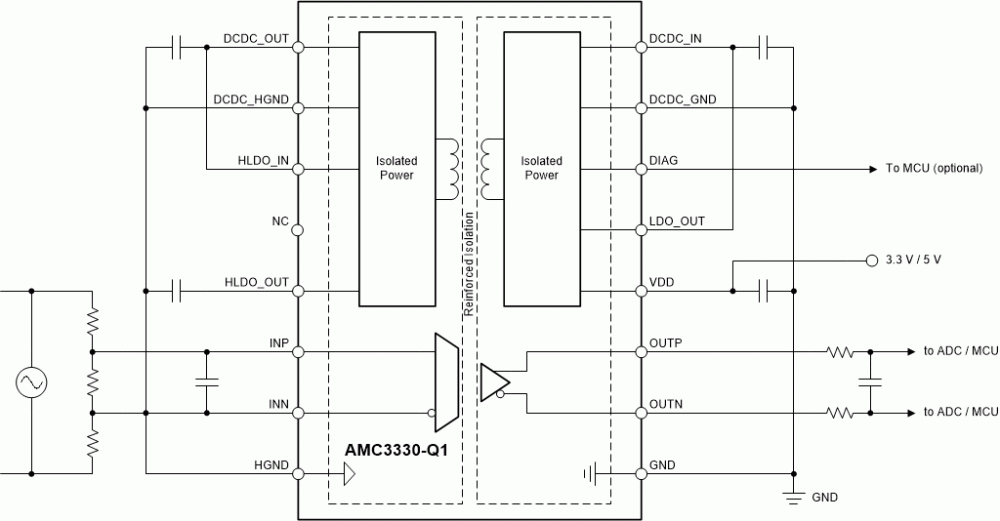

The input of the AMC3330-Q1 is optimized for direct connection to high-impedance, voltage-signal sources such as a resistor-divider network to sense high-voltage signals. The integrated isolated DC/DC converter allows measurement of non-ground-referenced signals and makes the device a unique solution for noisy, space-constrained applications.

The excellent performance of the device supports accurate voltage monitoring and control. The integrated DC/DC converter fault-detection and diagnostic output pin of the AMC3330-Q1 simplify system-level design and diagnostics.

The AMC3330-Q1 is specified over the temperature range of –40°C to +125°C.

AEC-Q100 qualified for automotive applications:

Temperature grade 1: –40°C to 125°C, TA

3.3-V or 5-V single supply operation with integrated DC/DC converter
±1-V input voltage range optimized for voltage measurements with high input impedance
Fixed gain: 2.0
Low DC errors:

Gain error: ±0.2% (max)
Gain drift: ±45 ppm/°C (max)
Offset error: ±0.3 mV (max)
Offset drift: ±4 µV/°C (max)
Nonlinearity: ±0.02% (max)
